產品特點：

1、先進工藝生產的制動臺粘砂滾筒，能保證20萬次檢測壽命，滾筒表面摩擦系數0.85以上，測試速度高達2.5 Km/h

2、汽車制動檢測臺采用高效率自鎖變速馬達（3.0kw/380V），經久耐用

3、汽車側滑臺具有輪胎側向彈性力釋放裝置，有效提高檢測汽車前輪側滑量的精確度和準確性。汽車側滑臺可由單板側滑臺升級為雙板側滑臺

4、汽車檢驗臺最大可通過軸載為4000kg的汽車; 使用工業控制計算機控制，自動流程操作、免教學

5、檢測線可配置前照燈檢測儀、廢氣分析儀、煙度計、聲級計、監控攝像和聯網接口等，所有檢測結果通過一張報表顯示

6、自主知識產權軟件，檢測系統可選擇手動單工位、半自動、全自動操作檢測

7、可自動打印并判定檢測結果，可按時間、車牌、車型等自動快速查詢檢測數據和記錄

8、系統內置最新的國家標準，用戶可更改檢測判定標準數值，可定制多種需求的軟件，功能配置靈活。適用于教學檢測線以及研發機構。

9、系統信號數據采集極快，引車員腳踩剎車的同時，系統軟件界面即可邊繪畫制動力過程曲線

10、懸架臺采用進口減振聯軸器，運行無任何振動，可無故障長期工作.懸架臺電機一邊工作的同時，系統軟件界面即可邊繪畫出懸架阻尼振動曲線。

Product features

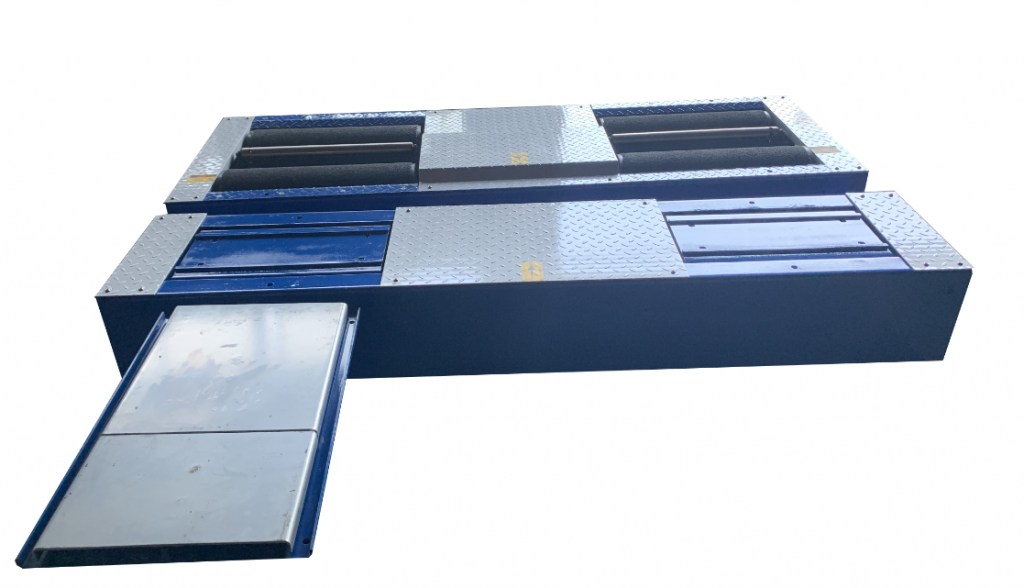

1, The sand-sticking roller of brake platform produced by advanced technology can guarantee the service life of 200,000 times, the friction coefficient of the roller surface is more than 0.85, and the testing speed is up to 2.5km/h

2, High efficiency self-locking variable speed motor (3.0kw / 380V) is adopted for the roller brake tester.

3, Sideslip tester with tire lateral elastic force release device, which check the car front wheel side slip in effectively improve the precision and accuracy. Automobile sideslip tester can be upgraded from single plate sideslip tester to double plate sideslip tester

4, Largest through- axial load is 4000 kg; Industrial control computer controlled

5, The test line can be equipped with headlight tester, gas analyzer, Opacimeter, sound level meter, monitoring camera, networking interface, etc., and all test results are displayed in one report

6, Independent intellectual property software, the detection system can choose manual single station, semi-automatic, full-automatic operation detection

7, It can automatically print and judge the test results, and can automatically and quickly query the test data and records according to time, license plate, vehicle model, etc.

8, The system is built-in with the latest national standards, users can change the value of detection and judgment standards, and can customize a variety of software requirements, with flexible function configuration. It is suitable for education use test line and R & D institutions.

9, The system signal data acquisition is very fast. When the driver steps on the brake, the system software interface can draw the brake force process curve at the same time

10, The suspension tester adopts imported damping coupling, which has no vibration during operation and can work for a long time without fault. While the motor of the suspension tester works, the system software interface can draw the suspension damping vibration curve at the same time.?
