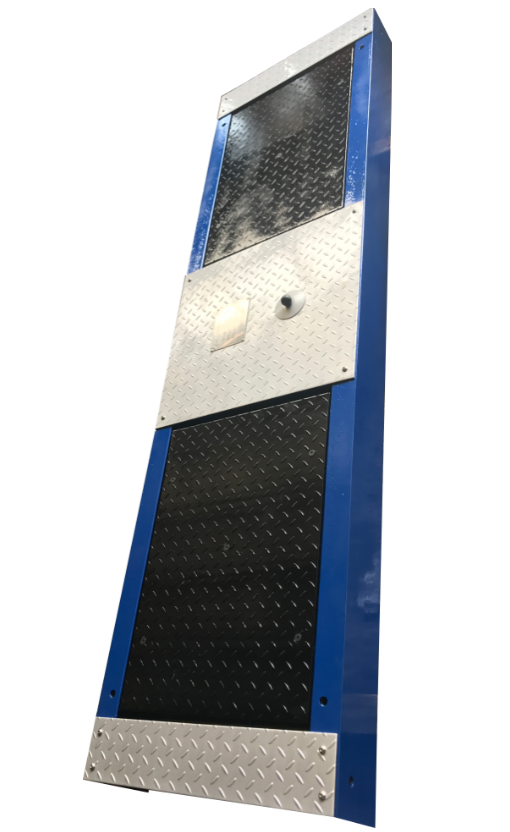

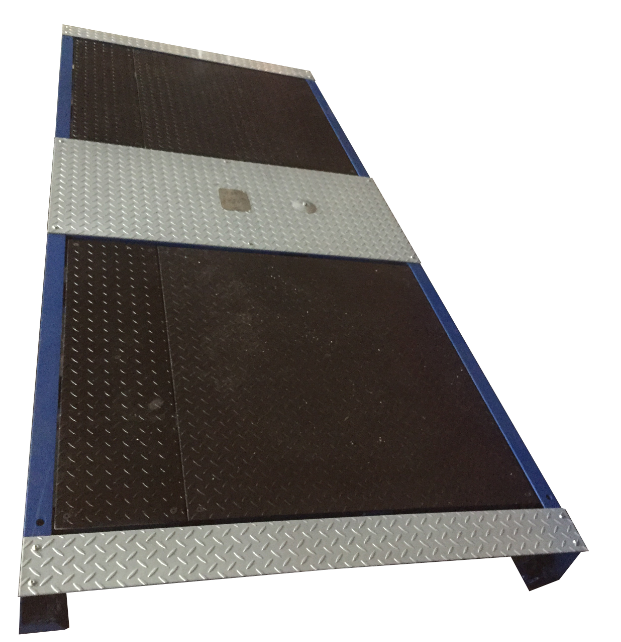

汽車側滑檢驗臺

產品描述：

汽車側滑檢驗臺主要用于測量由于汽車車輪外傾角和前束角共同作用而形成的側滑量，用于檢測機動車前輪直線行駛過程中，用滑動板左、右移動量來測量車輪滑移量的大小和方向，并判斷被檢車輛是否合格。

是汽車安全性能檢測的重要設備之一。它還能夠輔助四輪定位儀進行測量前檢測，判斷車輛是否需要進行四輪定位調整，可以節約車輛維修時間。

主要特性和特點：

◆機體堅固，用材強度高，質量好，配置一體式結構，防塵，免維護

◆高精度滾輪，滑板滑動靈活，水平初始拉力極小

◆可選用雙滑板聯動，同步性誤差＜0.04 mm，重復性極好

◆可選用雙滑板分動，結構先進，安裝簡單

◆可選用單滑板結構，滿足各種檢測需求

◆可以選用儀表控制或者是工業柜控制

◆可選配加裝快速?gòu)?fù)位裝置，用于雙前橋轉向車輛檢測，符合最新國家標準要求

技術參數Technical parameters

The product description

Vehicle sideslip tester mainly used for measuring sideslip quantity caused by the car wheel camber and toe Angle, this machine is one of the important equipment of auto safety performance test.

The vehicle side slip tester is mainly used to measure the sideslip quantity caused by the joint action of the camber angle and toe angle of the vehicle, In the process of straight-line driving, the left and right movement momentum of the sideslip plate is used to measure the magnitude and direction of the wheel and judge whether the inspected vehicle is qualified. It is one of the most important equipment for automobile safety performance test. It can also assist the four-wheel aligner to detect before measurement, and judge whether the vehicle needs to adjust the four-wheel alignment, which can save vehicle maintenance time.

Main features:

◆ Strong airframe, material with high intensity, good quality. Integrated structure, dust-proof, maintenance free
◆ High precision roller, flexible sideslip plate, initial tension in minimum level
◆ Double sideslip plates can be selected to slide together, with synchronous error less than 0.04 mm and excellent repeatability

◆ Double sideslip plates can be selected to slide separately, with advanced structure and simple installation

◆ Single sideslip structure can be selected to meet various testing requirements

◆ Instrument control or LCD control instrument with touch screen can be selected

◆ It can be equipped with a quick reset device, which can be used for the detection of double front axle steering vehicles, meeting the requirements of the latest national standards
