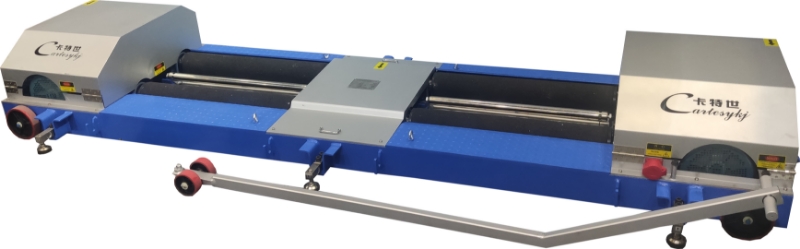

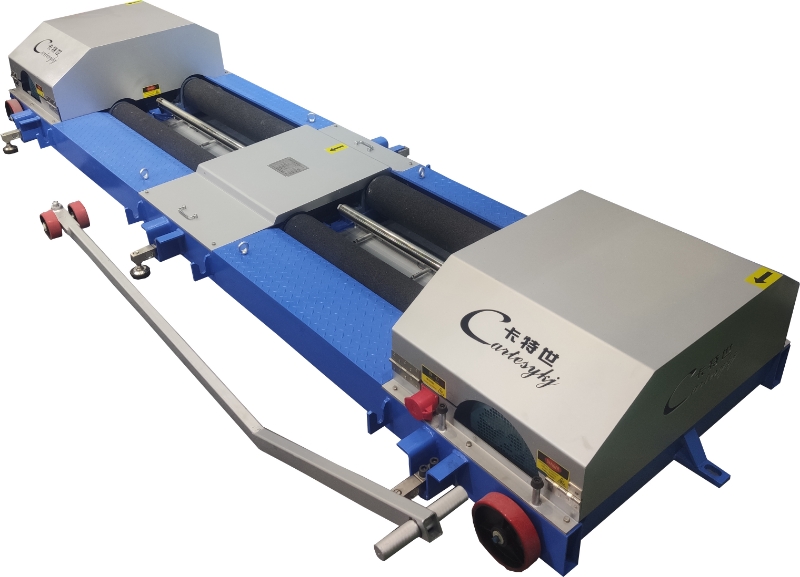

Mobile?Brake?Tester
Introduction -產品描述
產品能夠檢測：
制動力（N）軸重制動率（%）總制動效率（百分比）車軸制動不平衡（%）
★ 滾筒表面具有高粘附系數，接近路況，壽命超過28萬次。獨立的安全系統可以在車輪打滑時自動停止電機，保護車輪。
★無需基坑，便于移動。我們是配備無線控制系統的設備，可以在沒有固定工作臺的情況下測試設備
★具有自鎖功能，便于測試結束后汽車駛出。
★可選可折疊鋁坡道，使其更輕。
Brake Force (N) Axle Load（kg）. Friction Efficiency (%)
Axle Brake Efficiency (%) Sum Brake Efficiency (%) Axle Brake Imbalance (%)
★ The corundum roller surface with high adhesion coefficient, is near the road condition and hasmore than 280,000 life span. Independent safety system can automatically stop motor in case of wheel slip and to protect the wheel.
★ No need pit foundation, easy to be move around. We are equipment with wireless control system which can test the equipment without fixed work stage
★?With self-lock function which?is convenient for?car?drive?out?afterfinishing test.?★?Optional?foldable?aluminum?ramps,?make?it?lighter.
| Items | Parameters | ||
| Model型號 | CTFZ-3BY | CTFZ-10BY | CTFZ-15BY |
| Axle?Load承重 | 3T | 10T | 15T |
| Motor?Power電機功率 | 3KW X 2 | 11 kW X 2 | 15KW X 2 |
| Testing Speed檢測速度 | 2.5 kM/h | 2.5 kM/h | 2.5 kM/h |
| Testing?Range檢測范圍 | 0-9000N | 0 ~ 30 KN | 0~ 45KN |
| Roller?Diameter滾筒直徑 | Ф160mm | Ф160mm | Ф160mm |
| Roller?Length滾筒長度 | 750mm | 1,000mm | 1,200mm |
| Power Supply電壓 | 380V 50HZ 3P | 380V 50HZ 3P | 380V 50HZ 3P |
| Dimension ofBench(L?X?W?X?H)Ramp產品尺寸以及上車坡板尺寸 | 3420*910*180(530)mm1200*750*180mm*4pcs | 4120 *1470*180(530)mm 1200*1000*180mm*4pcs | 4320*1470*180(530)mm 1200*1200*160mm*4pcs |

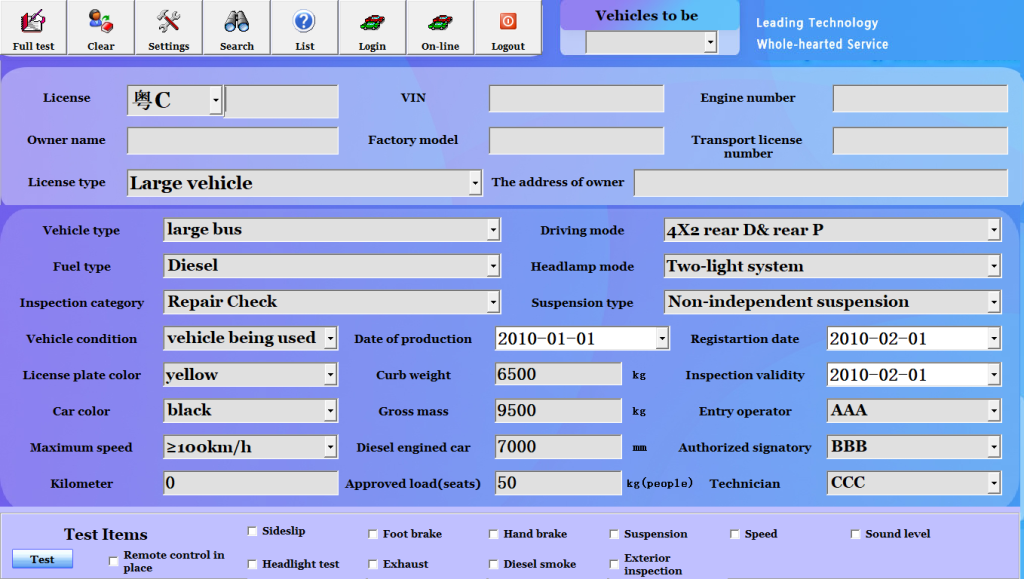

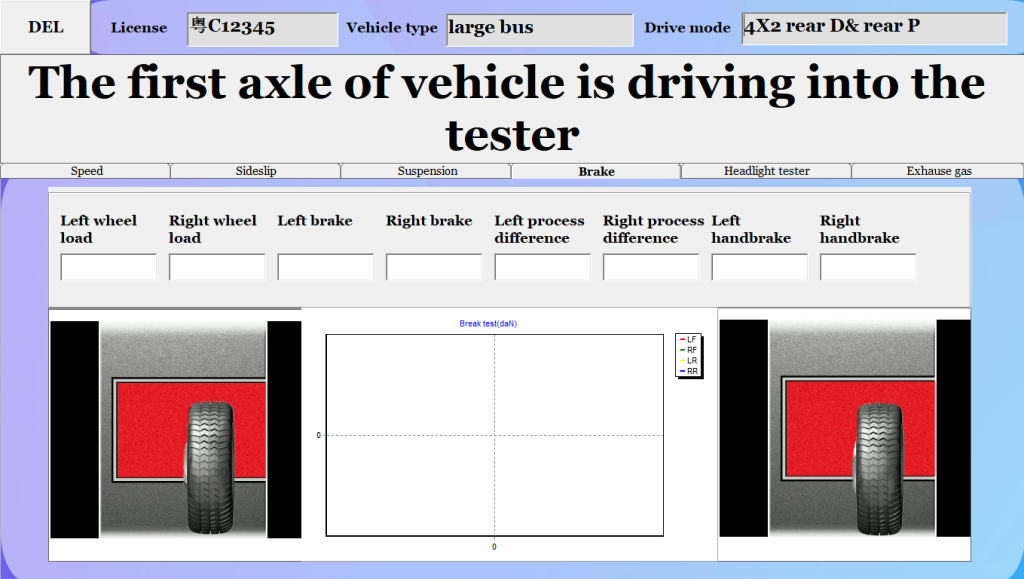

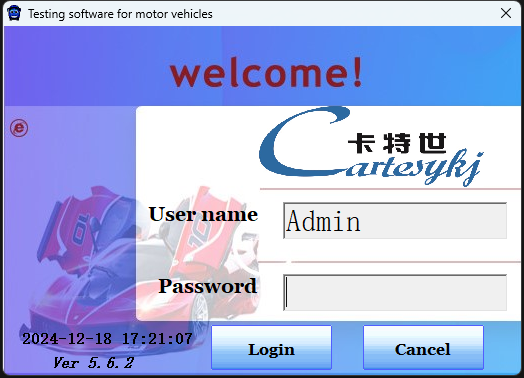

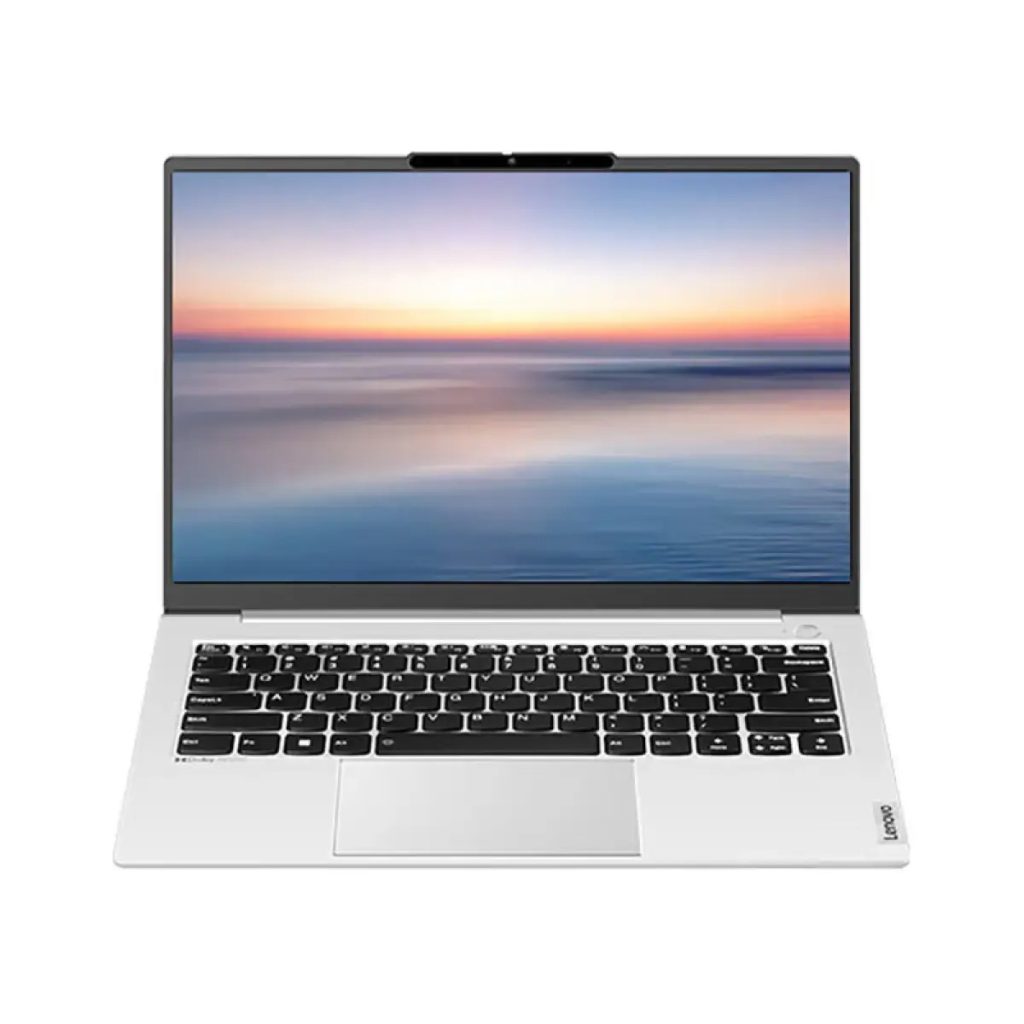

軟件界面-控制系統 software interface and control system
