產品描述：

汽車懸架裝置檢測臺是通過機械激振使汽車懸架系統產生諧振來測量汽車車輪動態接力和 車輪靜態接地力以判定和分析懸架臺裝置性能的檢測裝置.可用于檢測機動車靜態載荷時的輪重，檢測同軸左右輪懸架裝置吸收之差。主要是測試減震器的性能。

主要特性和特點：

機體采用整體焊接，強度高，方便安裝調試

采用低噪音結構設計，減少因設備自己噪音而產生的振動干擾。

使用界面操作方便，易學易用

采用進口減振器、優質高精度傳感器，性能穩定，維修保養簡單

檢測速度快、測試數據精度高、標定方便，重復性好

以圖表顯示的檢測結果，方便對比懸架維修前后的情況

大馬力電機，安全可靠。

基于EUSAMA測量標準，產品執行滿足交通部行業標準JT/T448-2001《汽車懸架裝置檢測臺》

技術參數

The product description：

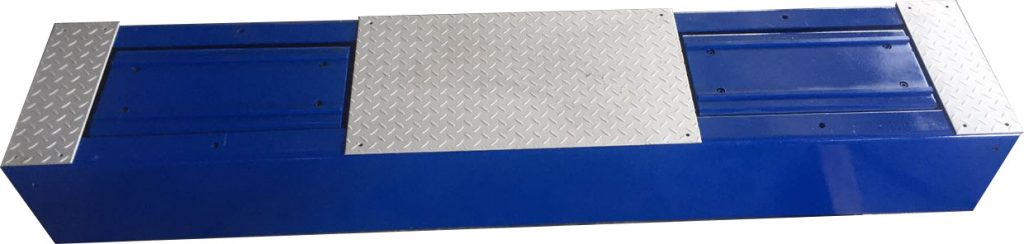

 Vehicle Suspension Tester is used to inspect the shock absorption performance of vehicles with independent suspension system. When the vehicle parks on the platform, the static wheel load will be measured by the sensor and displayed on the Monitor/Display Board. Then the motor will start to drive the Eccentric Wheel in the tester, which subsequently results into the vibration of Vibrating Plate. The motor will shut down automatically after reaching its nominal power. The plate will continue vibrating because of inertia, and result in sympathetic vibration between wheels and suspension. The minimum dynamic wheel load will be obtained during the sympathetic vibration. Then the absorption rate (displayed as percentage) can be calculated. The higher the absorption rate is, the better the suspension performance of the vehicle will be.

Main properties and features:

• Galvanized plates with longer service life, The machine body adopts integral welding with high strength, which is convenient for installation and debugging
• Low noise structure design is adopted to reduce vibration interference caused by equipment noise.
• The software interface is easy to operate, learn and use
• Imported shock absorber and high-quality and high-precision sensor are adopted, with stable performance. Easy maintenance of products
• Which can test fast with high accuracy of test data, convenient calibration and good repeatability
• The test results display in the visual graph are convenient to compare the situation before and after the suspension maintenance
• High power motor, safe and reliable.
• Based on the EUSAMA measurement standard, the product meets the industry standard JT / T448-2001
