產品描述：

滾筒反力式汽車制動檢驗臺是用于測量被檢車輛各軸（左右輪）制動力的儀器設備。其主要用于額定承載質量下汽車制動性能的測試，可檢測計算汽車各軸（左右輪）阻滯力，制動力及制動力差（過程差、最大差）、制動力與軸荷之比，以及手制動力與整車質量之比，同時加配踏板力計后還可檢測制動踏板力及制動協調時間，記錄和打印左右輪制動力曲線與踏板力曲線。該設備是機動車安全性能檢測的核心部分，也是安全性能檢測設備中技術性能要求較高的設備。

主要特性和特點：

◆機體采用整體焊接，強度高，無需地腳螺栓安裝，調試方便

◆滾筒采用高強度砂粒沾結，強度高，可達20萬次檢測，附著系數≥0.85，示值誤差<1.5%（國標≤±3%）

◆減速機為歐洲技術制造，電機、軸承、傳感器等主要部件均為國內名牌產品，通過ISO9001國際質量體系認證

◆加裝優質傳感器，可組成制動軸重復合檢測臺，增加檢測軸（輪）重項目，減少占地面積，節省投資

◆分帶氣囊舉升裝置和不帶氣囊舉升裝置供用戶選擇

◆分帶第三滾筒和軟件控制停機供用戶選擇

技術參數Technical parameters

Product description

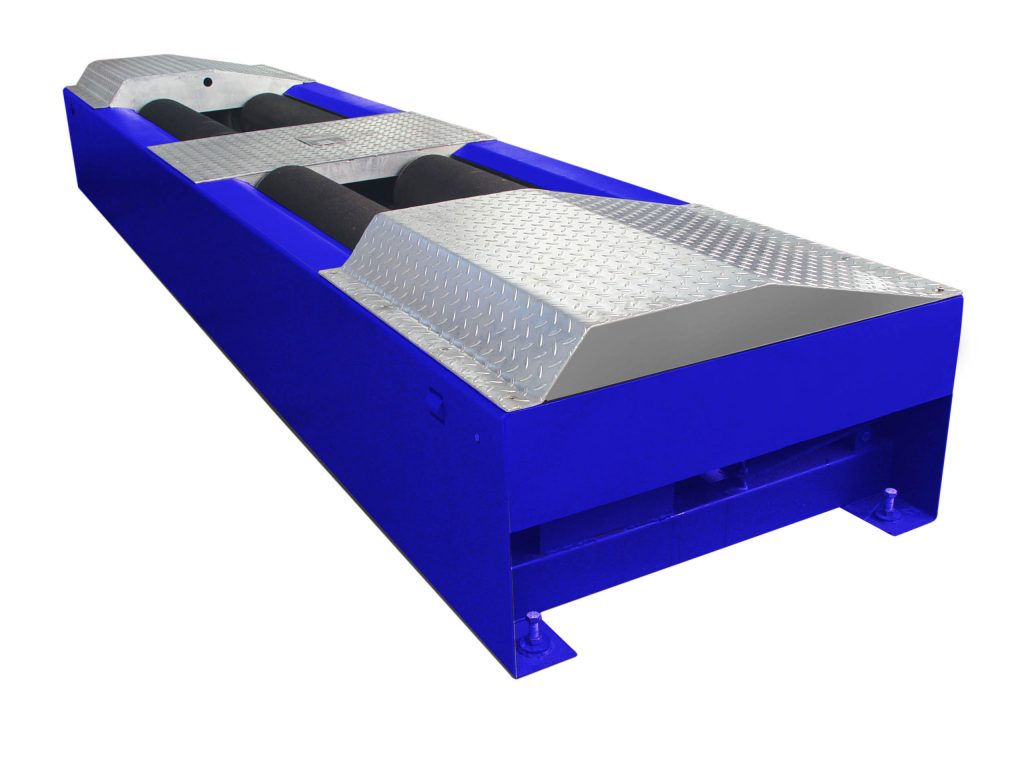

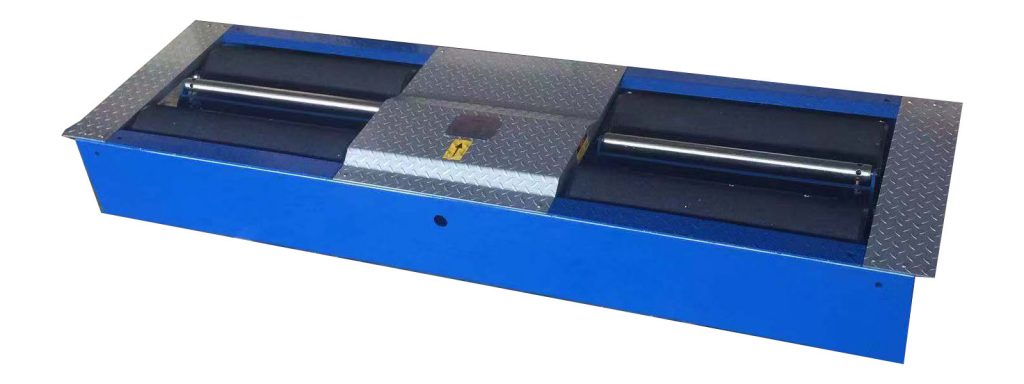

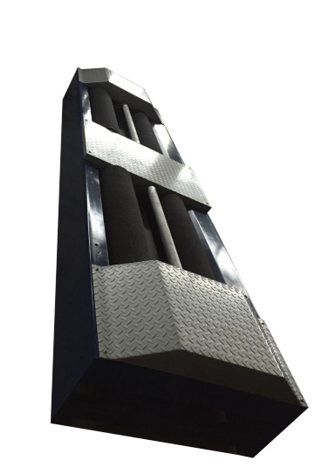

The roller brake tester is used to measure the braking force of each axle (left and right wheels) of the inspected vehicle. It is mainly used to test the braking performance of the vehicle under the rated load-bearing mass. The roller brake tester can test and calculation the each axis (eft and right wheels) block force of car, brake force and the deviation of brake force (process deviation, and maximum deviation), as well as the ratio of brake force and axis load , the ration of hand brake force and whole quality of the car. As the foot brake pedal pressure gauge is installed, the brake pedal force and the brake coordination time can be detected, and around round business power curve and pedal force curve can be recorded and printed. The equipment is core part of the motor vehicle security performance detection and the high technical performance requirements of safety testing equipment.

Main features

1. The main body is wholly welded, with high intension, no need to fix the main body on the ground with ground bolts and it is easy to adjust and install.
2. The rollers are covered with high quality surface sand, advanced adhesives and technology, the adhesion modulus is above 0.85 in case of both dry and wet, the longevity is over 200000 times. Test precision is high, repetition performance is good, brake force errors <1.5% (National standard <3%).
3.The reducer is manufactured by European technology, and the main parts of motor, bearing, sensor, etc. are all domestic famous brand products, which have passed ISO9001 international quality system certification and CE certification
4. It can be equipped with high-quality sensors to form a brake tester with axle load, increase the items of testing the axle (wheel) load of the vehicle, which will reduce the floor area and save investment that means no need to buy a axle(wheel) load tester.
5.You can choose the test bench with or without airbag lifting device.(The airbag lifting device is for the convenience of the vehicle entering and leaving the tester)
6. With automatic stop device, to prevent tire abrasion. We can provide two options: the third roller stop device and the software controlled shutdown.

Product description

The roller brake tester is used to measure the braking force of each axle (left and right wheels) of the inspected vehicle. It is mainly used to test the braking performance of the vehicle under the rated load-bearing mass. The roller brake tester can test and calculation the each axis (left and right wheels) block force of car, brake force and the deviation of brake force (process deviation, and maximum deviation), as well as the ratio of brake force and axis load , the ration of hand brake force and whole quality of the car. As the foot brake pedal pressure gauge is installed, the brake pedal force and the brake coordination time can be detected, and around round business power curve and pedal force curve can be recorded and printed. The equipment is core part of the motor vehicle security performance detection and the high technical performance requirements of safety testing equipment.

Main features

1. The main body is wholly welded, with high intension, no need to fix the main body on the ground with ground bolts and it is easy to adjust and install.
2. The rollers are covered with high quality surface sand, advanced adhesives and technology, the adhesion modulus is above 0.85 in case of both dry and wet, the longevity is over 200000 times. Test precision is high, repetition performance is good, brake force errors <1.5% (National standard <3%).
3.The reducer is manufactured by European technology, and the main parts of motor, bearing, sensor, etc. are all domestic famous brand products, which have passed ISO9001 international quality system certification and CE certification
4. It can be equipped with high-quality sensors to form a brake tester with axle load, increase the items of testing the axle (wheel) load of the vehicle, which will reduce the floor area and save investment that means no need to buy a axle(wheel) load tester.
5.You can choose the test bench with or without airbag lifting device.(The airbag lifting device is for the convenience of the vehicle entering and leaving the tester)
6. With automatic stop device, to prevent tire abrasion. We can provide two options: the third roller stop device and the software controlled shutdown.
