產品描述：

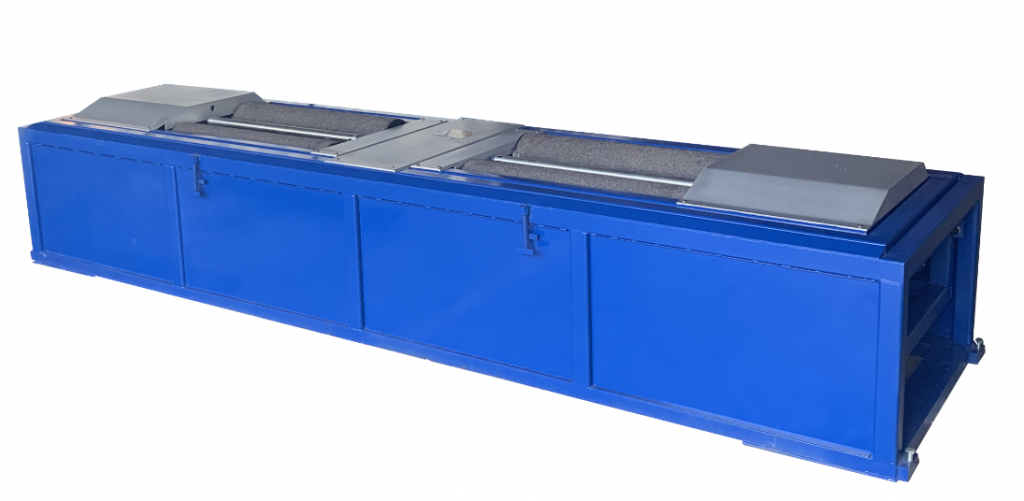

該制動臺通過自配的液壓泵站，可將制動滾筒舉升，從而對所有重型貨車各軸制動進行軸（輪）重加載檢測。完全符合最新國標GB21861-2014加載制動檢測設備對制動項目檢測的要求。

技術參數：

型號：CTFZ-15JZ型

可測輪重：7.5噸

最大制動力：39KN

加載舉升行程：100mm

制動力示值誤差：不大于1%

輪重示值誤差：不大于1%

輪重分度值：1kg

主要特點：

1符合最新國標GB21861-2014

2液壓同步舉升滾筒

3框架結構、設計新穎先進

Product description:
Platform can be brake drum lifting by mixing hydraulic pump station, thus all heavy duty truck each shaft brake axis (round) weight load test. Tally compliance with the latest national standard GB21861-2014 load brake testing equipment for braking test project requirements.

Technical parameters:
Measurable wheel weight: 7.5 tons
The maximum braking force: 39 KN
Load lifting stroke: 100 mm
Braking force error: value is not greater than 1%
Wheel load error: value is not greater than 1%
Wheel load index value: 1 kg

Main features:
1Satisfied the latest national standard GB21861-2014
2 hydraulic synchronizing lifting cylinder
3 frame structures, modern design advanced
